16" High Speed Prop Guard- BLACK

$325.95 USD
$325.95 USD
Sale Sold out
Shipping calculated at checkout.
For your outboards & stern drives
Fit Mercury, Yamaha, Honda, BRP, Suzuki, Mercruiser
110 H.P. to 350 H.P.
Installation instruction included
Easy to install

Materials

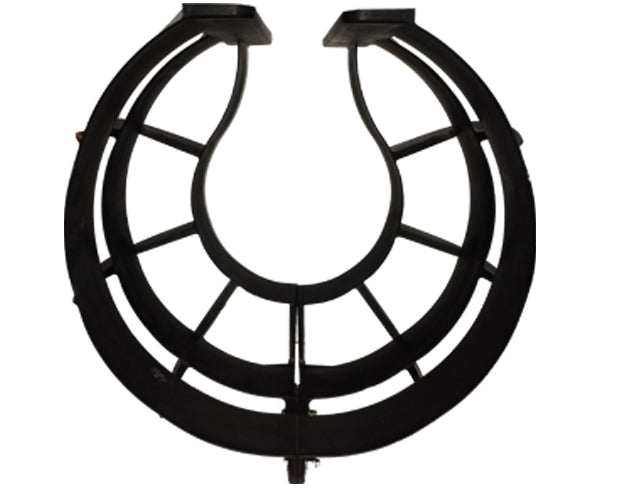

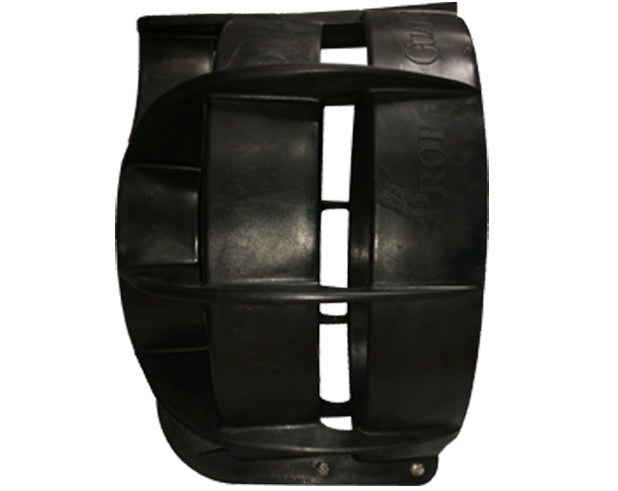

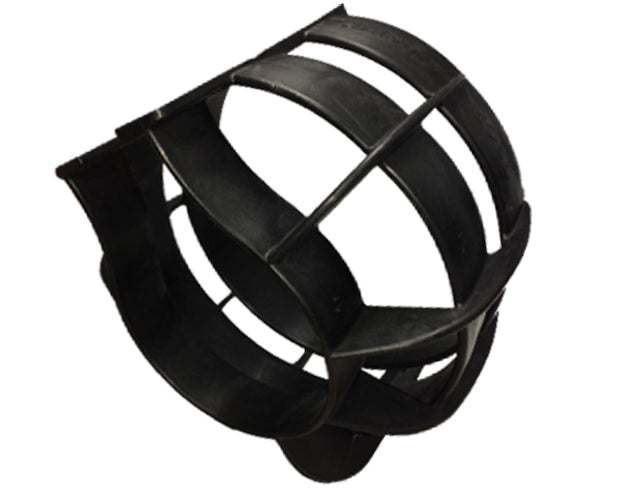

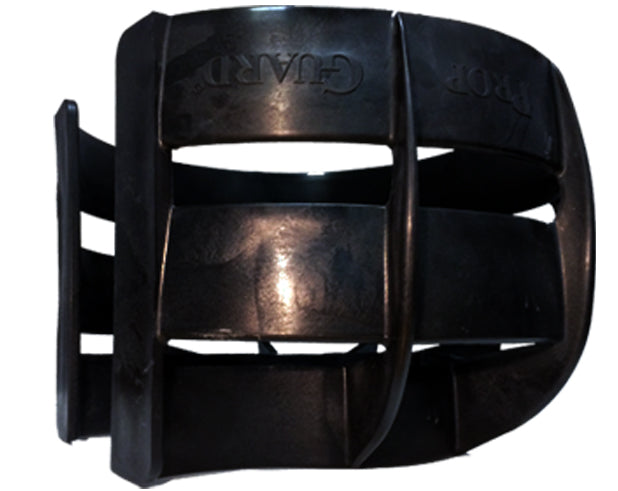

Prop Guard is a two piece plastic injection molded cage that will completely cover the propeller. The Prop Guard is attached by a specially designed clamp system and bolts. The Prop Guard's two halves are attached like a clam shell to the cavitation plate and the skeg of any outboard or stern drive motor.

Shipping & Returns

Safe Lakes LLC provides FREE pick up in the Madison and Lake Country areas. Shipping available, at an additional cost.

Prop Guard can not be returned or exchanged once drilled or installed. Please install at your own risk.

Dimensions

PROP GUARD SIZES TO OUTBOARD

  • HP 9XP Prop Guard® (White) fits 5hp to 9hp (out of stock)
  • 9” Prop Guard® (Yellow) fits 9.9hp to 20hp (except Big Foot & High Thrust, Require 11”)
  • 11” Prop Guard® (Orange) fits 25hp to 35hp (except Big Foot & High Thrust, Req.13”)
  • 13” Prop Guard® (Blue) fits 40hp to 65hp (except Big Foot & High Thrust, Req.14”)
  • 14” Prop Guard® (Red) fits 70hp to 100hp (except Big Foot & High Thrust, Req.16”)
  • 16” High Speed Prop Guard® (Black) fits 110hp to 350hp (All Stern Drives & Volvo Dual)

Prop Guards will fit all Manufacturers Outboards and Stern Drives
NOTE: All HP’s with Big Foot & High Thrust applications require next size up.

Prop Guard® Measure: cavitation plate to prop shaft center Recommend HP  Max Propeller Size
9” Prop Guard® 4.25” to 5.5” Fits 9.9hp to 20hp (except Big Foot & High Thrust, Require 11”) 8.5” propeller
11” Prop Guard® 5.75” to 6.5” Fits 25hp to 35hp (except Big Foot & High Thrust, Req.13”) 10.5” propeller
13” Prop Guard® 6.5" to 7.5"  Fits 40hp to 65hp (except Big Foot & High Thrust, Req.14”) 12.5” Propeller
14” Prop Guard® 6.5” to 7.5” Fits 70hp to 100hp (except Big Foot & High Thrust, Req.16”) 13.5” propeller
16” Prop Guard® 8.0” to 8.5” Fits 110hp to 350hp (All Stern Drives & Volvo Dual) 15.5” propeller



READ BEFORE PURCHASING OR INSTALLING PROP GUARD®!

Care Instructions

INSTALLATION

PROP GUARD INSTALLATION INSTRUCTIONS

  • Shipping / Pick-Up

    Safe Lakes LLC provides FREE pick up in the Madison and Lake Country areas. Shipping available, at an additional cost.

  • Returns / Exchanges

    Email info.safelakes@gmail.com to initiate any returns or exchanges.

    Products must be returned in original, undamaged packaging. Customers responsible for return shipping cost. Returns or exchanges (if authorized) must be made within 30 days of purchase. Prop Guards can not be returned or exchanged once drilled or installed. Please install at your own risk.
