Safe Lakes LLC

14" Prop Guard — Red

14" Prop Guard — Red

Regular price $259.95 USD
Regular price $259.95 USD Sale price $259.95 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

The 14-inch red Prop Guard is a propeller guard for compatible outboard and stern-drive applications.

Size at a glance

  • Guard size: 14 inches
  • Color: Red
  • General engine range: 70–100 hp
  • Installation instructions included.

Check your fit before ordering

Horsepower is a starting point. Confirm your engine model, propeller dimensions, and mounting clearances with the sizing guide. Big Foot and High Thrust applications in this horsepower range require the next size up (16-inch).

The manufacturer limits 9-, 11-, 13-, and 14-inch applications to vessels that do not exceed 35 mph.

Installation and returns

Check clearances before drilling and follow the installation instructions. Prop Guards cannot be returned or exchanged after drilling or installation.

Need help choosing? Email your engine make, model, horsepower, and propeller size.

Construction

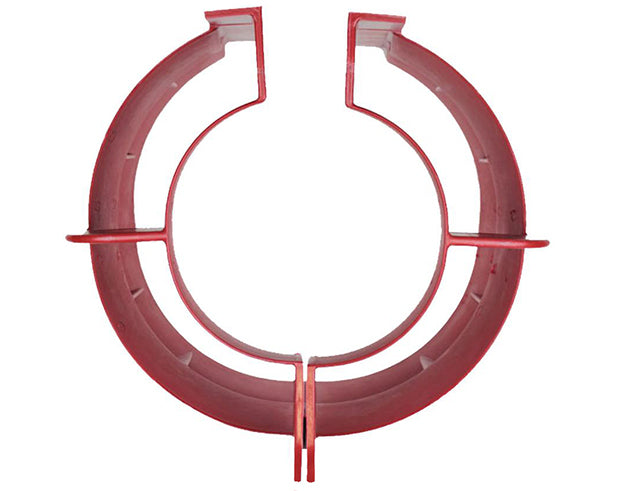

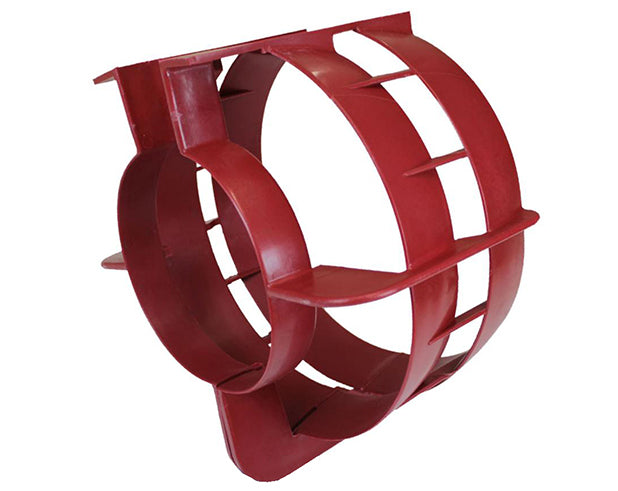

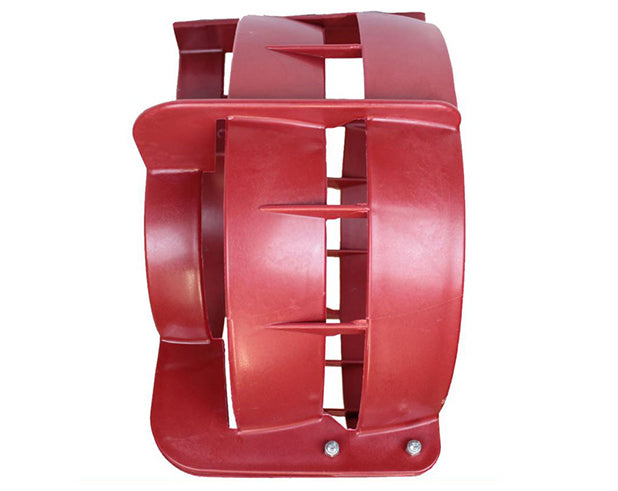

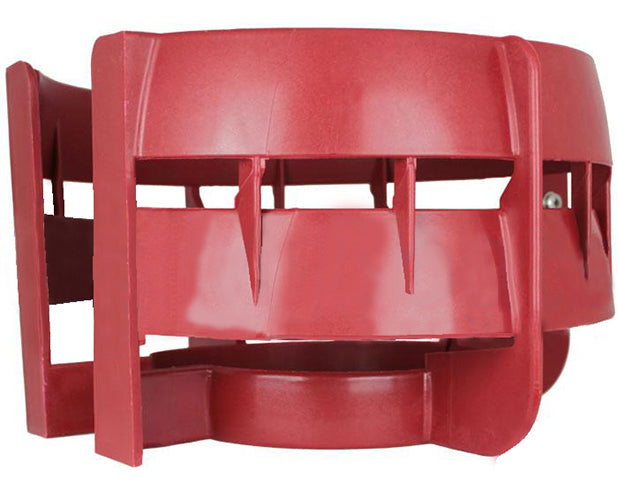

Prop Guard is a two piece plastic injection molded cage that will completely cover the propeller. The Prop Guard is attached by a specially designed clamp system and bolts. The Prop Guard's two halves are attached like a clam shell to the cavitation plate and the skeg of any outboard or stern drive motor.

Shipping & Returns

Safe Lakes LLC provides FREE pick up in the Madison and Lake Country areas. Shipping available, at an additional cost.

Prop Guard can not be returned or exchanged once drilled or installed. Please install at your own risk.

Sizing & fit exceptions

Start here to compare Prop Guard models. Horsepower alone does not confirm fit: check your engine model, propeller dimensions, and mounting clearances before ordering.

Prop Guard general engine ranges
Model General range Big Foot / High Thrust
9" Yellow 9.9–20 hp 11"
11" Orange 25–35 hp 13"
13" Blue 40–65 hp 14"
14" Red 70–100 hp 16"
16" Black 110–350 hp Confirm with us

Confirm before installation

Use the manufacturer’s measurement guide to confirm fit and clearances. The manufacturer limits 9-, 11-, 13-, and 14-inch applications to vessels not exceeding 35 mph.

Check clearances before drilling. Prop Guards cannot be returned or exchanged once drilled or installed. Read the installation instructions before starting.

Need help choosing?

Email Safe Lakes with your engine make, model, horsepower, and propeller dimensions.

Installation instructions

DOWNLOAD INSTALLATION INSTRUCTIONS

Time required: About 30 minutes. Don't be in a hurry!

Tools needed: Drill, 5/16" bit, 1/2" box end or socket wrench, C-clamps or Grip clamps.

install image

1. Place the Prop Guard® on the underside of the cavitation plate. Align the guard so that equal distance exists between the guard and the prop when the propeller revolves inside the guard. The Prop Guard® should be positioned as far forward on the cavitation plate as possible. Note: the mounting surface of the guard should remain flat against the cavitation plate. The use of a hand file may be needed to remove any imperfections in the lower surface of the
cavitation plate and the lower skeg.
REMOVE TRIM TAB FIN UNDER CAVITATION PLATE.
INSTALLATIONS OF 9”, 11”,13”& 14” MUST NOT EXCEED 35 MPH AT THIS TIME.
2. Clamp the guard to the underside of cavitation plate using C-clamps or Grip clamps. Insert bolts, washers and Nyloc nuts through bottom of pre-drilled holes at bottom of rings and loosely tighten.
3. Make certain that the guard is square with the cavitation plate, propeller and lower skeg. PROPELLER MUST BESURROUNDED BY THE PROP GUARD. MAY NEED TO SLIDE PROP GUARD (PG) FORWARD OR AFT FOR PROPER PROP CLEARENCE.
4. Drill 2, 3 or 4 (see chart Above) holes through the cavitation plate and guard on each side. Insert bolts, washers (on each side of bolts) and Nyloc nuts as illustrated and loosely tighten.
5. Drill 1 to 2 (see chart above) holes through lower skeg, per illustration. Insert bolt, washer and Nyloc nut, tighten securely. Now tighten all your bolts. REMOVE CLAMPS!
6. EXTREMELY IMPORTANT: MAKE SURE YOUR MOTOR IS TRIMMED TO OBTAIN MAXIMUM PERFORMANCE OF YOUR PROP GUARD® .
